files/MeltingPointApparatusS972_4c5bc519-7048-4650-9ba5-6ecbef60b9a2.png

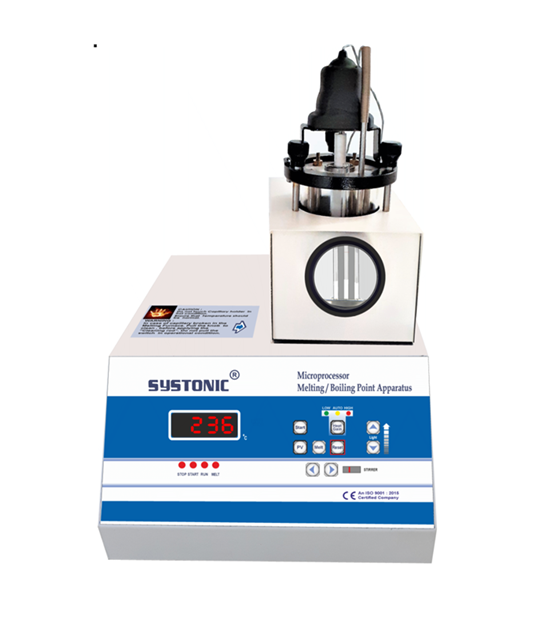

Digital Auto Melting Point Apparatus Up to 300°C, Suitable for Melting / Boiling Point, Readability in C, Resolution 1C, Programmable, Visual provision by Optical Magnifier, Automatic Ramp Rate Proceeding, Auto Gradient Rate of Heating Control, Sample Capacity 3 samples. The unit consists of a built-in magnetic stirrer, glare free background illuminator and cylindrical silicon oil bath. The silicon oil bath consists of a plain cylindrical container of corning glass having capacity of about 200 ml.
Features:-
- Melting View Magnifying display of melting operation with the help of adjustable magnifying glass
- Melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated.
Technical Specification:-
| Model | S- 972 |
| Temp. Range | Ambient to 300°C |
| Display | 4 Digit |
| Resolution | 1°C, (0.1°C Optional) |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3 samples and one 8mm provision for test tube, for the determination of boiling point of any liquid |
| Application Area | Silicon oil bath (Made of high temp. toughened glass) |
| Application | Suitable for boiling & Melting Point |
| Melting View | Magnifying display of melting operation with the help of adjustable magnifying glass, melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor Controlled closed loop PID |
| Ramp Rates | 2°C to 10°C/minute (Selectable auto-low-high) |
| Dimension | 270X330X145mm (LXBXH) |
| Power Supply | 230V ± 10% AC, 50Hz |
Accessories:-
- Temp Probe- 01 No.
- Silicon oil- 01 No.
- Lens- 01 No.
- Heater- 01 No.
- Magnetic Stirrer Capsule- 01 No.
- Titration Bottle- 01 No.
- Melting Point Capillaries- 100 Pcs
- Boiling test tube- 03 Pcs
Digital Auto Melting Point Apparatus Up to 300°C, Suitable for Melting / Boiling Point, Readability in C, Resolution 1C, Programmable, Visual provision by Optical Magnifier, Automatic Ramp Rate Proceeding, Auto Gradient Rate of Heating Control, Sample Capacity 3 samples. The unit consists of a built-in magnetic stirrer, glare free background illuminator and cylindrical silicon oil bath. The silicon oil bath consists of a plain cylindrical container of corning glass having capacity of about 200 ml.
Features:-
- Melting View Magnifying display of melting operation with the help of adjustable magnifying glass
- Melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated.
Technical Specification:-
| Model | S- 972 |
| Temp. Range | Ambient to 300°C |
| Display | 4 Digit |
| Resolution | 1°C, (0.1°C Optional) |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3 samples and one 8mm provision for test tube, for the determination of boiling point of any liquid |
| Application Area | Silicon oil bath (Made of high temp. toughened glass) |
| Application | Suitable for boiling & Melting Point |
| Melting View | Magnifying display of melting operation with the help of adjustable magnifying glass, melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor Controlled closed loop PID |
| Ramp Rates | 2°C to 10°C/minute (Selectable auto-low-high) |
| Dimension | 270X330X145mm (LXBXH) |
| Power Supply | 230V ± 10% AC, 50Hz |
Accessories:-
- Temp Probe- 01 No.
- Silicon oil- 01 No.
- Lens- 01 No.
- Heater- 01 No.
- Magnetic Stirrer Capsule- 01 No.
- Titration Bottle- 01 No.
- Melting Point Capillaries- 100 Pcs
- Boiling test tube- 03 Pcs
- Regular price
- Rs.50,000.00
- Sale price
- Rs.30,000.00
Product Description
Digital Auto Melting Point Apparatus Up to 300°C, Suitable for Melting / Boiling Point, Readability in C, Resolution 1C, Programmable, Visual provision by Optical Magnifier, Automatic Ramp Rate Proceeding, Auto Gradient Rate of Heating Control, Sample Capacity 3 samples. The unit consists of a built-in magnetic stirrer, glare free background illuminator and cylindrical silicon oil bath. The silicon oil bath consists of a plain cylindrical container of corning glass having capacity of about 200 ml.
Features:-
- Melting View Magnifying display of melting operation with the help of adjustable magnifying glass
- Melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated.
Technical Specification:-
| Model | S- 972 |
| Temp. Range | Ambient to 300°C |
| Display | 4 Digit |
| Resolution | 1°C, (0.1°C Optional) |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3 samples and one 8mm provision for test tube, for the determination of boiling point of any liquid |
| Application Area | Silicon oil bath (Made of high temp. toughened glass) |
| Application | Suitable for boiling & Melting Point |
| Melting View | Magnifying display of melting operation with the help of adjustable magnifying glass, melting point reading hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor Controlled closed loop PID |
| Ramp Rates | 2°C to 10°C/minute (Selectable auto-low-high) |
| Dimension | 270X330X145mm (LXBXH) |
| Power Supply | 230V ± 10% AC, 50Hz |
Accessories:-
- Temp Probe- 01 No.
- Silicon oil- 01 No.
- Lens- 01 No.
- Heater- 01 No.
- Magnetic Stirrer Capsule- 01 No.
- Titration Bottle- 01 No.
- Melting Point Capillaries- 100 Pcs
- Boiling test tube- 03 Pcs
