files/Melting-Point-S-9750.jpg

128X64 Graphical LCD Display, Resolution 0.1°C, Temp. Range- Ambient to 350°C The instrument gives audio & visual indications, on reaching the temperature at which the sample melts. PC interface: USB to PC, Grade “A” PT-100, Platinum sensor. Suitable for Melting Point Only.

Technical Specifications:-

Temp. Range	Ambient to 350ºC
Display	128 X 64 Graphical LCD
Resolution	0.1ºC
Temp. Sensor	Grade “A” PT-100, Platinum Sensor
Sample Capacity	3 Samples, Capillary Dimension 1.4 mm
Application Area	Miniature Furnace Module
Application	Suitable for Melting Point only
Temp. Control & Ramp Rate Heating	Microprocessor controlled closed loop PID, Auto Adjustable Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation
Operation	Auto determination of Melting Point for all 3 Samples separately
Application Area	Miniature Furnace Module
PC Interface	USB to PC
Power Supply	230 V ± 10% AC, 50 Hz.
Dimension	270X330X145 mm (LXBXH)
Weight	8 KG

OPERATION: Fully Automatic “Sample Fill and Forget”: All the selection of programming is fully protected from power failure including “HOLD” action of melting temperature. Once the start action is initiated, it will reach to find out the melting point of sample.

Opto-coupled I.R. Transmission based. Only Crystalline sample (Sample required to be transparent at the time of melting, not Suitable for Dark Colored Samples).

Systonic

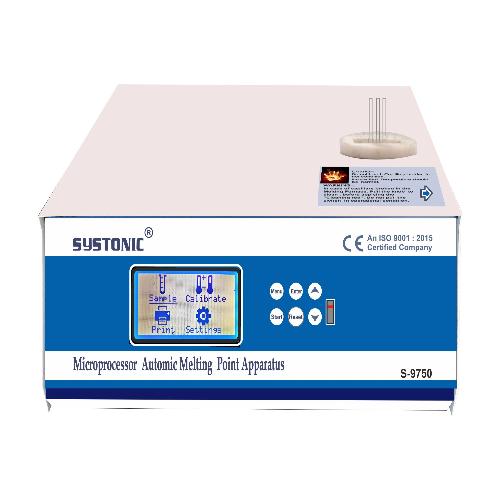

Melting Point Apparatus Automatic

Regular price: Rs.42,000.00

128X64 Graphical LCD Display, Resolution 0.1°C, Temp. Range- Ambient to 350°C The instrument gives audio & visual indications, on reaching the temperature at which the sample melts. PC interface: USB to PC, Grade “A” PT-100, Platinum sensor. Suitable for Melting Point Only.

Technical Specifications:-

Temp. Range	Ambient to 350ºC
Display	128 X 64 Graphical LCD
Resolution	0.1ºC
Temp. Sensor	Grade “A” PT-100, Platinum Sensor
Sample Capacity	3 Samples, Capillary Dimension 1.4 mm
Application Area	Miniature Furnace Module
Application	Suitable for Melting Point only
Temp. Control & Ramp Rate Heating	Microprocessor controlled closed loop PID, Auto Adjustable Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation
Operation	Auto determination of Melting Point for all 3 Samples separately
Application Area	Miniature Furnace Module
PC Interface	USB to PC
Power Supply	230 V ± 10% AC, 50 Hz.
Dimension	270X330X145 mm (LXBXH)
Weight	8 KG

OPERATION: Fully Automatic “Sample Fill and Forget”: All the selection of programming is fully protected from power failure including “HOLD” action of melting temperature. Once the start action is initiated, it will reach to find out the melting point of sample.

Opto-coupled I.R. Transmission based. Only Crystalline sample (Sample required to be transparent at the time of melting, not Suitable for Dark Colored Samples).

Regular price: Rs.42,000.00

Quantity

Product Description

128X64 Graphical LCD Display, Resolution 0.1°C, Temp. Range- Ambient to 350°C The instrument gives audio & visual indications, on reaching the temperature at which the sample melts. PC interface: USB to PC, Grade “A” PT-100, Platinum sensor. Suitable for Melting Point Only.

Technical Specifications:-

Temp. Range	Ambient to 350ºC
Display	128 X 64 Graphical LCD
Resolution	0.1ºC
Temp. Sensor	Grade “A” PT-100, Platinum Sensor
Sample Capacity	3 Samples, Capillary Dimension 1.4 mm
Application Area	Miniature Furnace Module
Application	Suitable for Melting Point only
Temp. Control & Ramp Rate Heating	Microprocessor controlled closed loop PID, Auto Adjustable Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation
Operation	Auto determination of Melting Point for all 3 Samples separately
Application Area	Miniature Furnace Module
PC Interface	USB to PC
Power Supply	230 V ± 10% AC, 50 Hz.
Dimension	270X330X145 mm (LXBXH)
Weight	8 KG

OPERATION: Fully Automatic “Sample Fill and Forget”: All the selection of programming is fully protected from power failure including “HOLD” action of melting temperature. Once the start action is initiated, it will reach to find out the melting point of sample.

Opto-coupled I.R. Transmission based. Only Crystalline sample (Sample required to be transparent at the time of melting, not Suitable for Dark Colored Samples).
