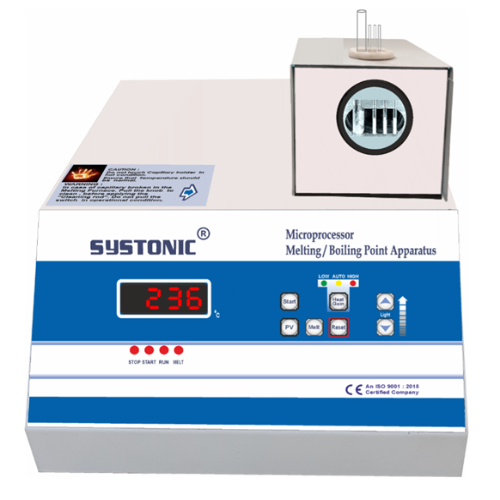

The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 3 Digit LED Display
- Suitable for Any Dark Colored Samples.
- 350°C Temp. Range
- Durability and Longevity
Technical Specification:-
| Temp. Range | Ambient to 350ºC |
| Display | 3 Digits LED |
| Resolution | 1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3+1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Melting View | Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor controlled closed loop PID, Automatic Ramp Rate of Heating |
| Ramp Rates | 2ºC to 10ºC/minute (Selectable Auto-Low-High), |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
- Regular price
- Rs.40,000.00
- Sale price
- Rs.23,000.00
The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 3 Digit LED Display
- Suitable for Any Dark Colored Samples.
- 350°C Temp. Range
- Durability and Longevity
Technical Specification:-
| Temp. Range | Ambient to 350ºC |
| Display | 3 Digits LED |
| Resolution | 1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3+1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Melting View | Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor controlled closed loop PID, Automatic Ramp Rate of Heating |
| Ramp Rates | 2ºC to 10ºC/minute (Selectable Auto-Low-High), |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
- Regular price
- Rs.40,000.00
- Sale price
- Rs.23,000.00
Product Description
The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 3 Digit LED Display
- Suitable for Any Dark Colored Samples.
- 350°C Temp. Range
- Durability and Longevity
Technical Specification:-
| Temp. Range | Ambient to 350ºC |
| Display | 3 Digits LED |
| Resolution | 1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity | 3+1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Melting View | Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| Heating Control | Microprocessor controlled closed loop PID, Automatic Ramp Rate of Heating |
| Ramp Rates | 2ºC to 10ºC/minute (Selectable Auto-Low-High), |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
