• Robust, reliable metal construction and excellent optical performance.
• Extremely simple to use, this instrument is ideal for the examination of everyday objects in fascinating yet understandable detail. Highly recommended for Primary Science Education and Field Study Centres.
• Black stoving finish and hard instrumental chromium plating will accent any classroom environment.

TECHNICAL SPECIFICATIONS:

BODY

MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90^o assembled from DIE-CAST parts.

VIEWING TUBE

MECHANICAL tube of length 160+1mm.

EYEPIECE

H10x & H15x.

NOSEPIECE

TRIPLE revolving nosepiece with positive centering and click stop.

OBJECTIVES

5x, 10x & 40/45x (SL).

STAGE

FIXED square stage of size 120mm X 120mm with Phosphorus stage clips.

FOCUSING

RACK AND PINION knob provided for sensitive focusing.

KNOBS

SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses.

CONDENSER

TWO LENS ABBE condenser NA 1.25 with rack & pinion movement and swing-out filter holder.

ILLUMINATION

STANDARD plano concave mirror 50 mm dia. in fork for natural light.

MAGNIFICATION

100x-675x.

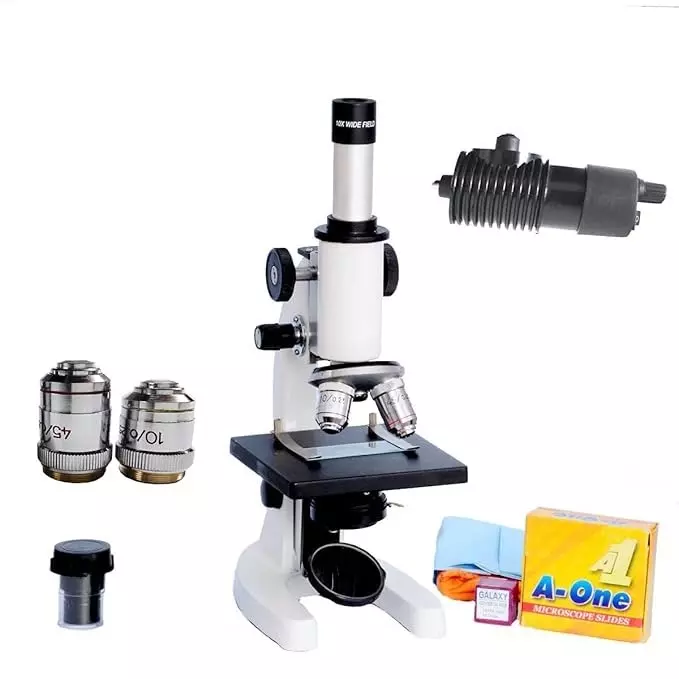

PACKAGING CONTENTS

Packed in shockproof Styrofoam molded box having provision for placing eyepieces and objectives and dust cover.
